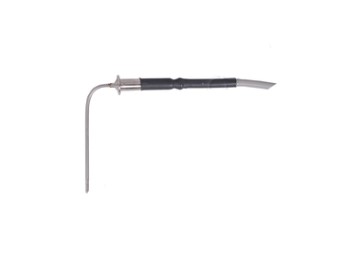

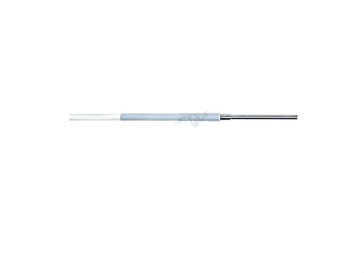

Rtd For Continues Use In Autoclave – Radix/ Ấn Độ
Specifically designed to withstand high pressure & temperature of the continuous sterilization process in autoclaves. Capable of measuring temperature upto 150°C.
Completely sealed construction. As a result, the entire sensor assembly, including the probe and cables extending from the RTD, can be completely submerged in water without affecting accuracy or long-term stability.
Pt-100, 4-wire
Class AA (1/3DIN) accuracy as per IEC 60751
Simplex (One) / Duplex (Two) circuits
Range 0 to 150°C
Sheath material - SS316L (1.4404)
Teflon insulated cable
5 meters / 10 meters cable length
-RAC240
3-wire Pt100 element in simplex or duplex assembly
0 to 150°C range
Class AA (1/3DIN) as per IEC 60751
Teflon insulated Cable in , 5 meters and 10 meters
SS316L sheath
-RAC232 / RAC242
4-wire Pt100 element in simplex or duplex assembly
0 to 150°C range
Class AA (1/3DIN) as per IEC 60751
Teflon insulated, Silicon jacket Cable in 8 meters
3.17 diameter, SS316L sheath
Giá: Liên hệ
Completely sealed construction. As a result, the entire sensor assembly, including the probe and cables extending from the RTD, can be completely submerged in water without affecting accuracy or long-term stability.
Pt-100, 4-wire
Class AA (1/3DIN) accuracy as per IEC 60751
Simplex (One) / Duplex (Two) circuits
Range 0 to 150°C
Sheath material - SS316L (1.4404)
Teflon insulated cable
5 meters / 10 meters cable length
-RAC240
3-wire Pt100 element in simplex or duplex assembly
0 to 150°C range
Class AA (1/3DIN) as per IEC 60751
Teflon insulated Cable in , 5 meters and 10 meters
SS316L sheath
-RAC232 / RAC242
4-wire Pt100 element in simplex or duplex assembly
0 to 150°C range
Class AA (1/3DIN) as per IEC 60751
Teflon insulated, Silicon jacket Cable in 8 meters
3.17 diameter, SS316L sheath
Giá: Liên hệ
